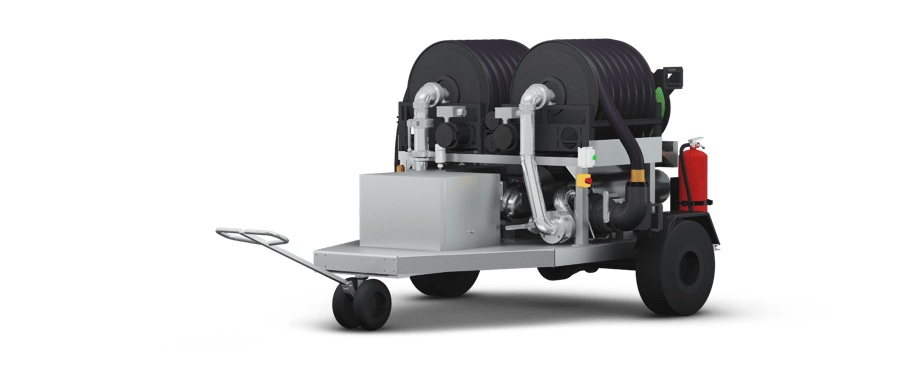

The Rampmaster Electric Hydrant RampCart

Revolutionary regenerator technology in a small package

To solve the challenges of narrow body hydrant systems, Rampmaster has developed the RampCart, a smaller version of our patented, proven Regenerator hydrant cart.

RampCart


Learn more about the Rampmaster Rampcart

Rampcart Specification

  • Chassis
    Aluminum
  • Engine
    48V Electric.
  • Charging
    48V Alternator with Temperature Compensated Voltage regulation.
  • Exhaust
    0 EPA Exhaust.
  • Transition
    Fixed ratio pulley drive system.
  • Rear / Drive Axle
    ~3,000 lb.
  • Front Axle
    ~500 lb.
  • Break System
    Rear Drum.
  • Wheels
    19.5” Argent Painted Steel (6).
  • Instruments
    Driver information center with:
    Voltmeter.
    Hobbs hour meter.
  • Warning
    Low Voltage.
  • Pumping Control
    Carter 3” pressure control valve.
    Carter 2 ½” pit coupler.
    Air Eliminator.
    Electric deadman control.
  • Power Recovery
    Inline turbine.
  • Filtration
    300 GPM filter monitor.
    Gammon filter differential pressure gauge.
  • Hoses / Nozzles
    One (1) 2½” x 10’ hose with Whittaker 2½“ F-117 underwing nozzle.
    One (1) 2½” x 25’ hose with Carter Pit coupler.
  • Metering
    LC M-25 300 GPM meter with Mechanical registration and ticket printing.
  • Control Panels
    Side mounted: contains 4” nozzle pressure gauge, millipore taps (upstream and downstream of filters).
  • Piping
    Schedule 5 stainless steel piping.
  • Interlocks
    All underwing nozzles, rails, and pit coupler.
  • Deadman
    Electric.
  • Interlocks
    All nozzles, lift deck, and pit coupler.
  • Emergency Shutdown
    Two (2) quick access shut-offs located at right front and left front module corners.
  • Fire Extinguishers
    One (1) Ansul fire extinguishers.
  • Testing
    Refueler is completely flow tested for proper operation of all controls and valves, meter is calibrated.
