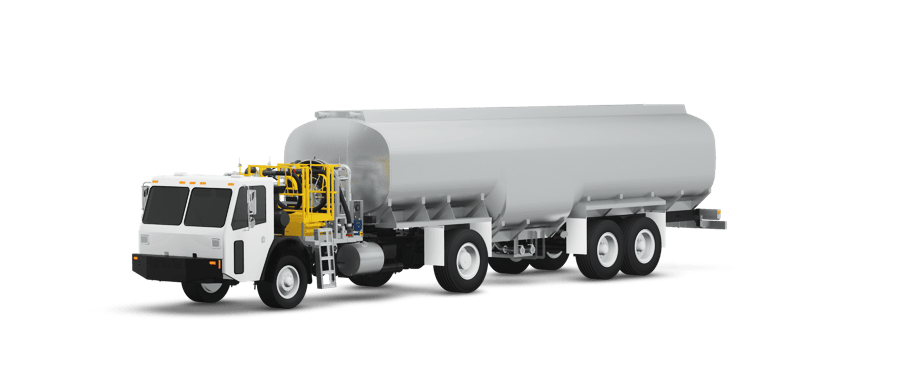

17,500 Gallon WD Modular Lift Deck Jet Refueler

The super heavy duty truck that transformed refueling

The largest capacity non-articulating refueler in the world, the 17,500 WD is the perfect truck for large cargo operations, long distances to the fuel farm, fueling long-haul aircraft or fueling multiple aircraft in rapid succession.

17500 Gallon Super Heavy Duty Jet Refueler

360° view request a quote spec sheet



  • Modular Design

    Rampmaster has pioneered and truly proven our exclusive modular refueler design. “On-airport exchange” of the power vehicle, tank or pump module keeps Rampmaster refuelers pumping and eliminates re-plumbing costs during overhaul.

  • Power Module

    By using a cab-over diesel chassis, we avoid the difficulties of servicing hard-to-reach maintenance points while also offering superior visibility for increased safety. Our heavy-duty diesel and Allison automatic transmission combination provides unequaled durability in actual service.

    Features

    • Commercial Class 8 Chassis
    • Heavy Duty Diesel Engine
    • Allison Automatic Transmission
    • Cab-Over Design
    • Full Air Brakes
    • Radial Tires
    • Chalmers Suspension on drive and trailer axles
  • Pump Module

    Rampmaster pump modules are constructed out of aluminum and stainless steel so that no paint is needed, which lowers maintenance costs. They also feature a four-inch, 800 gallons per minute, filter monitor with differential pressure gauge and air eliminator.

    Features

    • Engine Management System for Flow Control
    • 800 GPM up to 20 PSI back pressure
    • 2 Upper Deck Hoses
    • 1 Single Wrap Side Reel (450+ GPM)
    • Air-Operated Deadman
    • Stainless Steel Piping
    • Ticket Printer
    • Gorman Rupp Fuel/Defuel Valve
    • Mid-Module Hydraulic Lift Deck
  • Tank Module

    The Rampmaster heavy-duty aluminum trailer detaches in minutes via forklift chutes. When coupled, Rampmaster’s patented design enables the vehicle to steer easily as a true straight truck without trailer pivoting. Our precision fit tanks feature a number of design, engineering and fabrication innovations that give us the confidence to offer a lifetime leak guarantee. We use a heavier metal with perfect fit welding to create precise, pre-formed shells instead of the standard elliptical skins pulled in tension around bulkheads. Our tanks also feature a reflex bottom and flat, roll-resistant sides that reduce lateral load shift and the possibility of rollover.

    Features

    • Single Compartment Heavy-Duty Aluminum Tank
    • 2-Stage Hi-Level Shutoff
    • Bottom Load (Standard)
    • Precheck (Standard)
    • 120-Inch Axles
    • Chalmers Suspension
    • Tank See-Level Gauge
  • Support & Warranty

    Field mechanics are located strategically to provide assistance as needed. Factory personnel place vehicles into service for “zero defect” start-ups.

    All Rampmaster modular refuelers are guaranteed for one year. Tanks are guaranteed against leaks for ten years (see warranty for specific details).



No Control Valves
= Multitude of
Efficiencies

See how EMS simplifies pumping flow control for unprecedented savings in fuel, maintenance and emissions.
